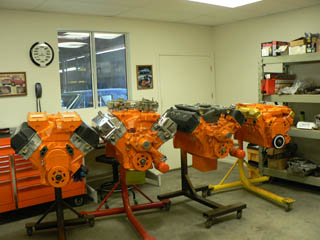

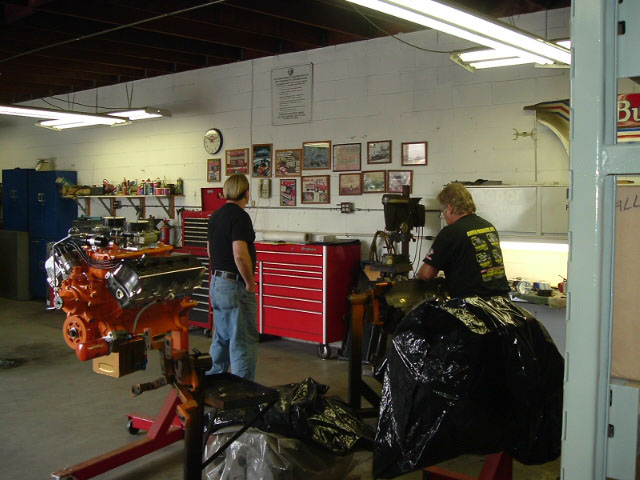

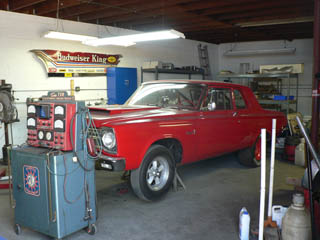

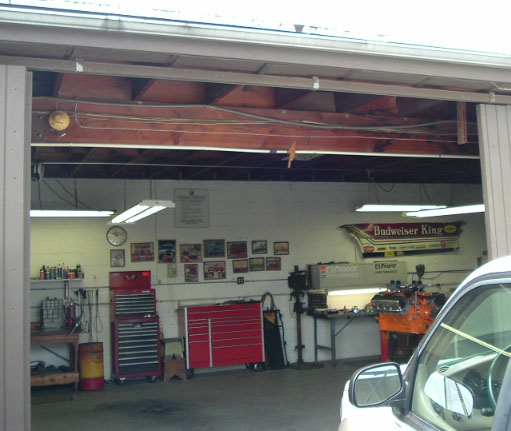

Dale's shop

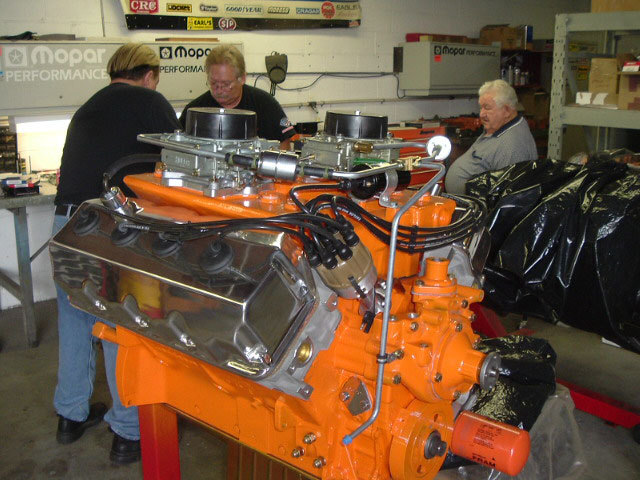

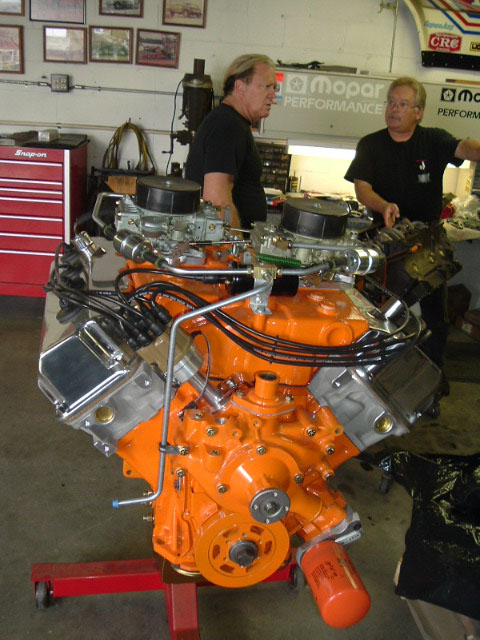

Running Bob Mosher's Max Wedge on a stand



Running Bob Labonte's Hemi on a stand

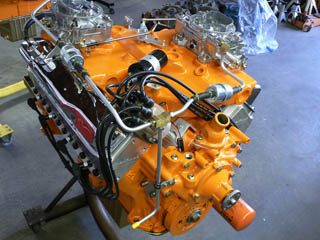

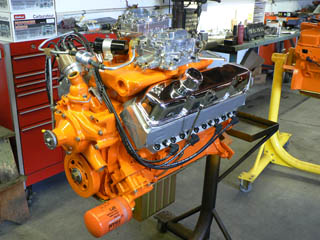

500ci Stroked Wedge Built for customer Donwan Harrell

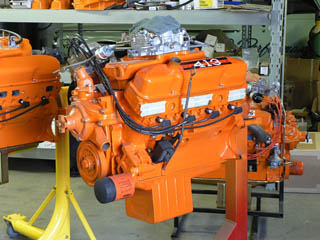

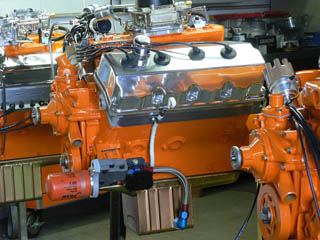

547ci Hemi built for Larry Hursh (left) and Bob Snider's '62 Max Wedge (right)









Here is the dyno

sheet for a 547in Hemi that Dale Reed built for Brian Dickey





10-24-07



Speed rpm CBTrq  lb-ft CBPwr CHp BSFC lb/Hphr Fuel lb/hr Fa+Fb GPH OilPr psi Oil °F Water °F Cat °F
3000 700 400 .414 157.3 26.74 98.5 159 131 85
3100 707 417.5 .422 158.8 26.99 99.1 159 131 85
3200 713 434.2 .417 164 27.87 99.8 159 131 85
3300 716 449.8 .41 167.5 28.46 100.6 159 131 85
3400 717 464.2 .403 170.7 29.01 101.2 159 131 85
3500 716 477.3 .402 175.6 29.85 101.7 159 131 85
3600 714 489.1 .405 182 30.93 102.2 159 131 85
3700 711 501 .405 186.7 31.73 102.5 159 131 85
3800 709 513 .404 190 32.34 103 159 131 85
3900 709 526 .402 194.2 33.01 103.3 159 131 85
4000 712 542 .403 200 33.99 103.5 159 131 85
4100 717 560 .407 207.8 35.3 103.7 159 132 85
4200 723 578 .408 245.2 36.6 103.7 159 133 85
4300 727 595 .409 222.7 37.8 103.7 159 133 85
4400 730 611 .41 229.6 39 103.8 159 133 85
4500 730 625 .412 237 40.3 103.9 159 133 85
4600 727 637 .416 244.7 41.6 104 159 133 85
4700 723 647 .42 251.8 42.8 104.1 159 133 85
4800 716 645 .428 260.5 44.3 104.2 159 133 85
4900 708 660 .436 268.6 45.7 104.4 159 133 85
5000 699 666 .443 275.7 46.8 104.8 160 133 85
5100 691 671 .447 280.1 47.6 105 162 133 85
5200 684 677 .451 285.1 48.5 105.1 162 133 85
5300 676 682 .455 290.1 49.3 104.9 162 133 85
5400 669 688 .456 293 49.8 104.8 162 133 85
5500 662 693 .458 296.4 50.4 104.6 162 133 85
5600 656 700 .46 300 51 104.5 162 134 85
5700 649 705 .463 304.8 51.8 104.2 162 134 85
5800 640 706 .468 310.2 52.7 104.1 162 134 85
5900 630 708 .471 313.2 53.2 103.7 162 134 85
6000 621 710 .476 317.3 53.9 103.3 162 134 85
6100 608 706 .479 320.4 54.5 102.9 162 136 85
6200 594 701 .487 324.2 55.1 102.3 162 136 85
